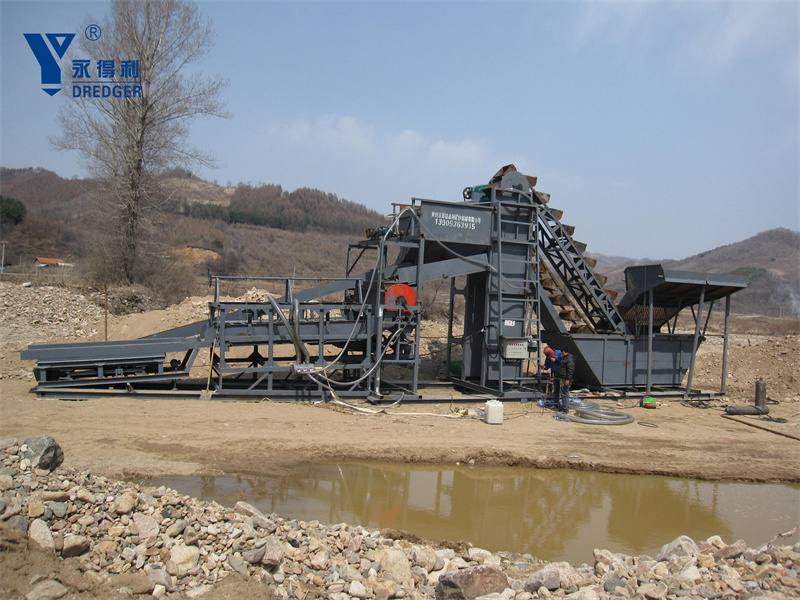

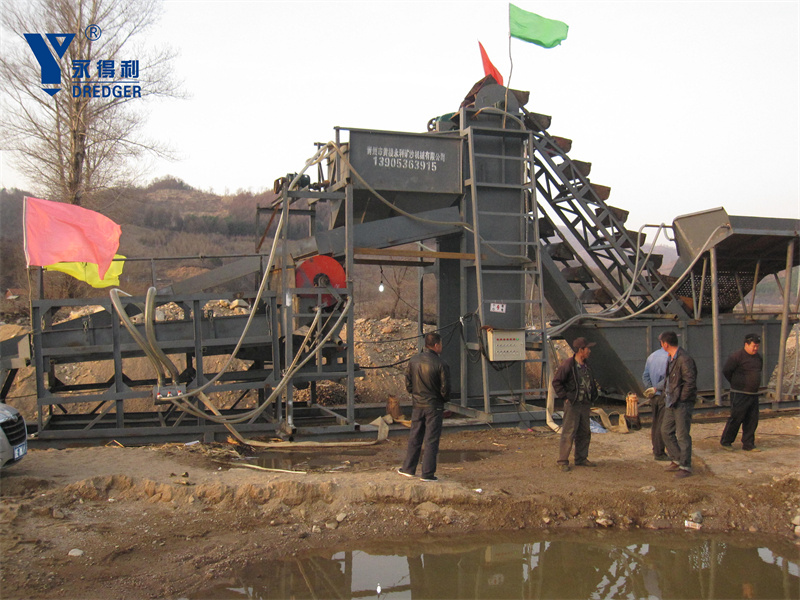

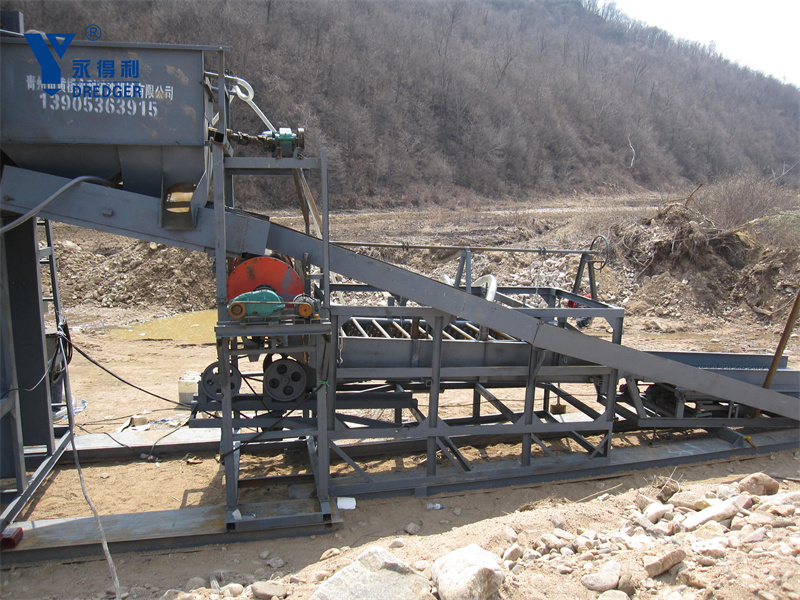

Gold Washing Plant with Iron Separator

Our Gold Washing Plant with Iron Separator is an advanced, dual-purpose mineral processing system engineered to recover alluvial/placer gold while simultaneously extracting high-density magnetic iron minerals (such as magnetite, ilmenite, and iron sand). By integrating heavy-duty clay washing, precision screening, and high-intensity magnetic separation, this plant solves the common mining industry problem of "black sand interference." It prevents the overloading of gold recovery circuits, ensuring maximum gold recovery rates and producing a valuable iron byproduct.

Application Scenarios

This specialized configuration is highly effective and widely deployed in environments heavily contaminated with heavy magnetic minerals:

· Black Sand Alluvial Gold Mining: Ideal for riverbeds, beaches, and paleochannels where free gold is mixed with massive amounts of heavy, magnetic black iron sand.

· Iron-Rich Laterite & Red Clay Deposits: Processing sticky, iron-rich tropical soils where gold is tightly bound with magnetite and hematite matrices.

· Dual-Commodity Recovery Projects: Tailored for operations aiming to maximize revenue by saving fine gold flake while generating a secondary, high-grade iron ore concentrate for sale.

· Tailings Re-mining: Re-processing historical gold mine tailings where previous operators failed to recover gold due to severe iron mineral interference.

Product Features

Our integrated plant combines mechanical scrubbing with advanced magnetic sorting technology to deliver superior processing efficiency:

· Integrated Inline Magnetic Separator: Equipped with heavy-duty Wet Magnetic Separators (or Magnetic Drums) featuring high-remanence NdFeB (Neodymium) permanent magnets. This system automatically and continuously removes up to 95%+ of magnetic iron minerals before or during the gold concentration stage.

· Anti-Clogging Gold Recovery Circuit: By eliminating heavy iron sand upfront, this design prevents the "blinding" or overloading of gold mining carpets, centrifugal concentrators, and jig machines. This keeps the gold recovery slots open and highly receptive to fine gold particles.

· High-Torque Rotary Scrubbing & Sizing: Features a heavy-duty rotary trommel/scrubber lined with wear-resistant manganese steel. Internal mechanical lifters thoroughly break down sticky, iron-bearing clay to liberate every single gold grain.

· Non-Magnetic Processing Zones: Critical structural parts and chutes near the magnetic separator are constructed from high-grade stainless steel or non-magnetic materials. This eliminates magnetic interference, ensuring smooth slurry flow and preventing material blockages.

· Precision Multi-Stage Spray Systems: Fitted with an optimized network of high-pressure water nozzles. These nozzles wash away adhering clays from both large gravels and magnetic particles, ensuring zero gold gets trapped in the iron concentrate.

· Heavy-Duty Mobile or Modular Chassis: Built on a rugged, oversized steel framework. Available in Stationary Modular layouts or Wheeled Mobile chassis for easy transportation and rapid setup in rugged, remote mining environments.

Technical Selection Guide (How to Choose the Right Plant)

Selecting the perfect gold washing plant with an iron separator depends on specific geological and operational variables. Use the following criteria to guide your choice:
