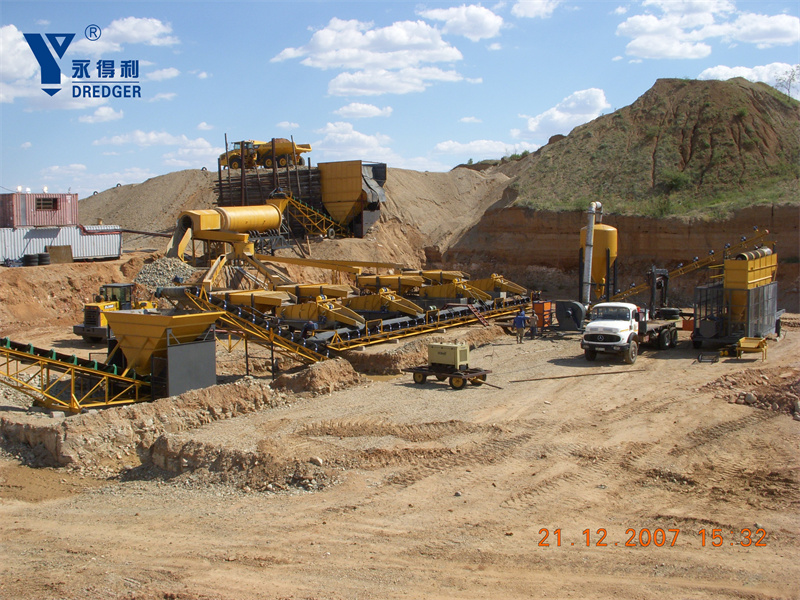

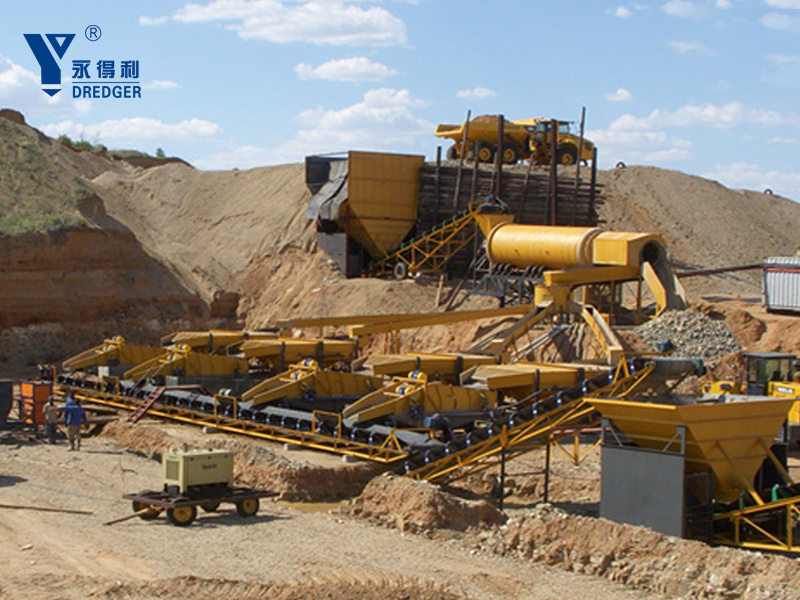

Diamond Washing Plant

Our Diamond Washing Plant is a premium, heavy-duty processing solution engineered to liberate, scrub, and pre-concentrate rough diamonds from complex geological formations. Designed to handle both highly cohesive clays and abrasive gravels, this plant combines high-torque scrubbing with precision screening to maximize diamond liberation while completely eliminating the risk of crystal damage or diamond loss.

Typical Application Scenarios

Our diamond washing equipment is engineered to adapt to diverse global mining conditions, delivering exceptional recovery rates in the following environments:

· Alluvial Diamond Mining: Processing riverbed gravels, terrace deposits, and paleochannels where diamonds are mixed with heavy stones and gravels.

· Kimberlite Pipe Ore Recovery: Washing and primary sizing of crushed kimberlite or lamproite rocks—the primary volcanic sources of diamonds.

· Sticky Clay & Laterite Deposits: Breaking down highly plastic, stubborn muds (common in tropical regions) that encapsulate and mask diamond crystals.

· Marine & Coastal Mining: Tailored configurations for processing marine gravels and beach sands rich in gemstone-quality diamonds.

· Remote Remote Exploration: Modular and mobile units designed for fast deployment in remote bush or desert locations with minimal infrastructure.

Core Product Features

Our plants are engineered with cutting-edge technology to ensure operational reliability, high throughput, and maximum gemstone security:

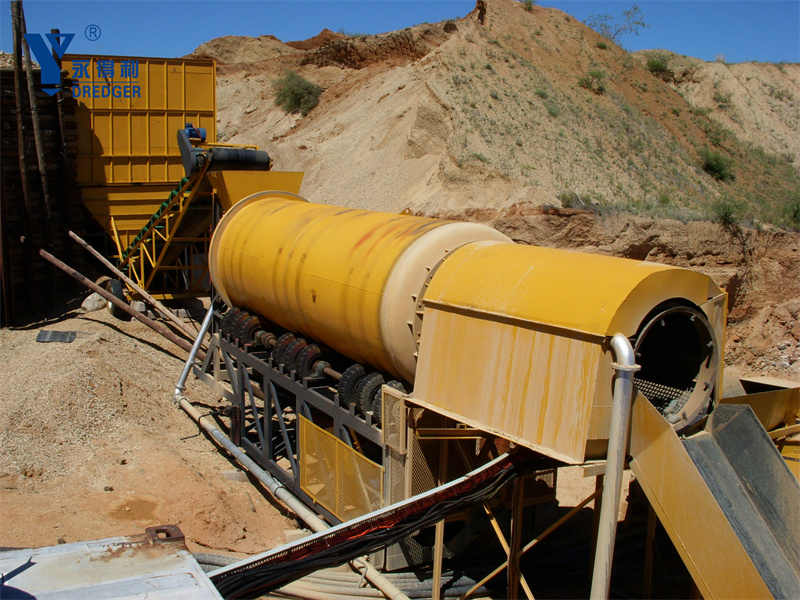

· Aggressive Rotary Scrubbing Technology: Equipped with heavy-duty rotary scrubbers or paddle trommels. Internal high-lift lifters and mechanical cutting blades vigorously disintegrate sticky clay matrices through intensive material-on-material attrition.

· Zero-Damage Material Handling: All hoppers, transfer chutes, and discharge points are lined with premium, impact-absorbing rubber or polyurethane. This protects high-value, large diamond crystals from chipping or fracturing during processing.

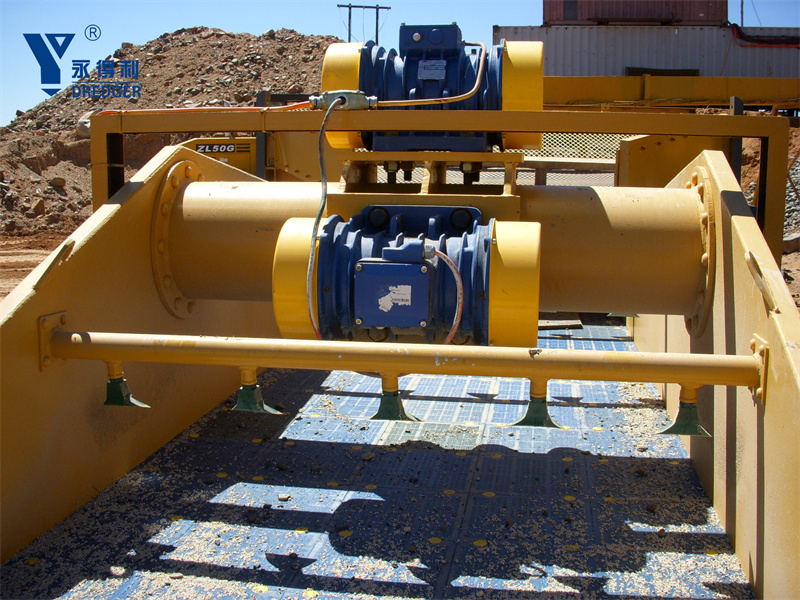

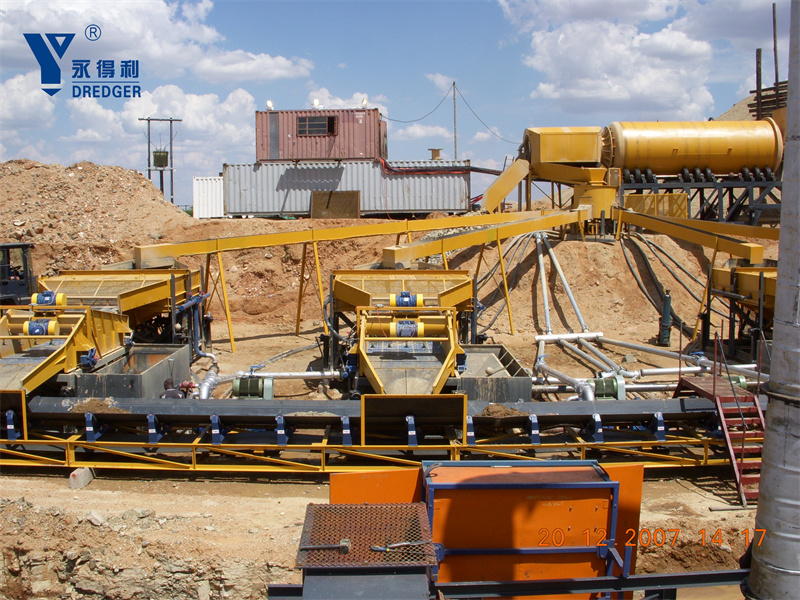

· Precision Polyurethane (PU) Sizing Screens: Features multi-deck screening modules fitted with wear-resistant PU screen panels. This ensures highly accurate size fractioning (e.g., fine, medium, coarse), which is vital for the efficiency of downstream separation.

· High-Security Enclosure Compatibility: The plant architecture is fully compatible with secure, anti-theft final recovery systems. It seamlessly feeds into locked, containerized X-Ray Flowsort (XRT) units or Grease Tables to prevent product diversion.

· Rugged Heavy-Duty Chassis: Built with oversized structural steel and manganese liners to withstand heavy gravel impacts. Available in Stationary Modular, Skid-Mounted, or Wheeled Mobile configurations for ultimate site flexibility.

· High-Efficiency Pre-Concentration Loops: Integrated with heavy-particle Diamond Jigs or Rotary Pan Concentrators that rapidly discard 85%+ of light, barren waste rock, concentrating only the heavy minerals and diamonds.

· Smart Water Management Systems: Optimized spray-bar layouts and water-recycling readiness ensure maximum washing pressure with reduced fresh-water consumption, making it ideal for arid mining zones.

We also can supply others upon customer's request.

In order to supply our solution and quotation, please inform us:
1. required work capacity per hour?
2. ratio of sand and stone? Any clay?
3. diamond particle size

4. other information about work site
