Jack Up Barge

Product Overview

A Jack-Up Barge, also known as a self-elevating platform, is a highly specialized marine vessel equipped with multiple movable legs. It can move into location, lower its legs into the seabed, and hydraulically lift its entire hull above the water's surface, transforming from a floating barge into a rock-solid, stable working platform immune to ocean waves, currents, and tides.

Key Product Features

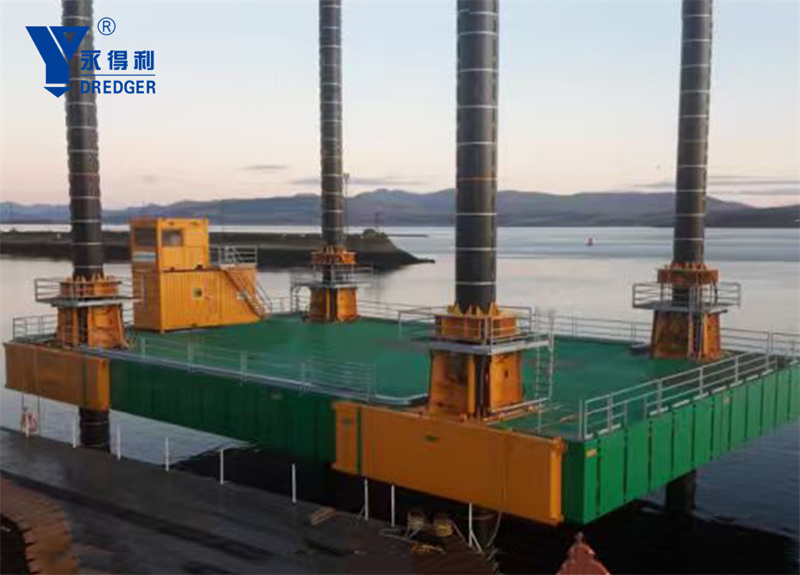

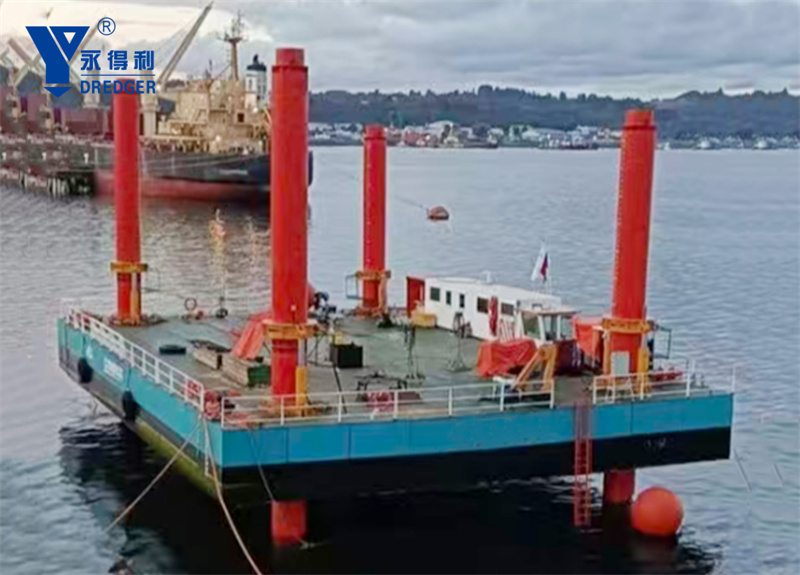

· Heavy-Duty Leg & Spud Can System: Outfitted with high-tensile steel legs (typically 4 structural tubular or truss-type legs) and large spud cans at the base to prevent severe sinking into soft mud.

· High-Capacity Hydraulic Jacking System: Utilizes high-precision pin-in-hole hydraulic systems or continuous rack-and-pinion drives to smoothly lift and hold thousands of tons of deck weight.

· Large Open Working Deck: Offers an expansive, heavily reinforced deck space designed to carry massive payloads, crane systems, and accommodation modules.

· Wave-Independent Stability: By elevating completely out of the water, the platform eliminates all vessel rolling and pitching caused by wind, swells, and heavy tidal movements.

· Self-Propelled or Towed Options: Available as non-self-propelled units for cost-effective towing, or self-propelled vessels for faster, autonomous transit between job sites.

Wide Application Scenarios

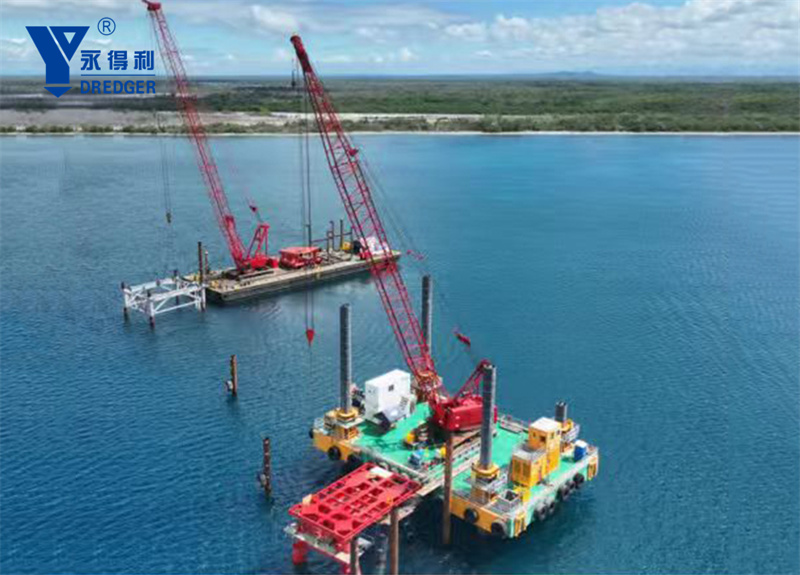

· Offshore Wind Farm Construction: Extensively used as a steady base for installing wind turbine foundations, towers, nacelles, and blades, as well as offshore substations.

· Marine Geotechnical Drilling & Surveying: Ideal for underwater core sampling, oil and gas exploratory drilling, and conducting highly precise geological surveys.

· Port, Bridge & Coastal Infrastructure: Serves as a perfectly stable platform for heavy piling, bridge pier construction, and quay wall maintenance near busy harbors.

· Offshore Oil & Gas Support: Acts as a safe accommodation block, maintenance workshop, or well-intervention platform next to fixed offshore structures.

How to Select the Right Model

Choosing the perfect jack-up barge depends on matching the equipment's structural physical limits with the specific environmental and load conditions of your offshore site:

1.Water Depth & Leg Length: This is your primary constraint. Calculate the maximum water depth at the site, add the maximum tidal surge/wave height, the air gap (distance between the hull bottom and highest wave crest), and the expected leg penetration depth into the seabed. The total leg length must comfortably exceed this sum.

2.Environmental Loading (Survival Conditions):

oTruss Legs: Best for open-ocean, deep-water, or harsh environments (like the North Sea) because their open lattice structure drastically reduces hydrodynamic drag from strong waves and currents.

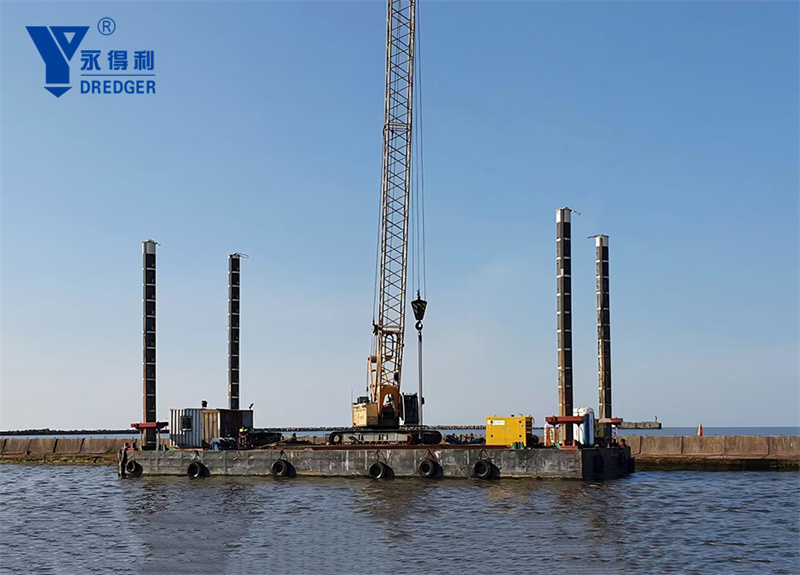

oSolid Tubular Legs: Highly cost-effective and perfectly suited for calmer, shallower coastal waters, sheltered bays, and inland river projects.

3.Variable Deck Load (VDL) & Crane Integration: Determine the total weight of your cranes, heavy equipment, supplies, and personnel. Ensure the platform's jacking capacity can easily lift this total weight, and check that the deck has the structural reinforcement (load per square meter) to support heavy localized crane footprints.

Soil Conditions & Spud Can Sizing: Analyze the seabed geological report. For very soft clay or deep silt, you must select a model with oversized spud cans to distribute weight evenly and prevent dangerous structural tilting or punch-through failures during pre-loading operations.
