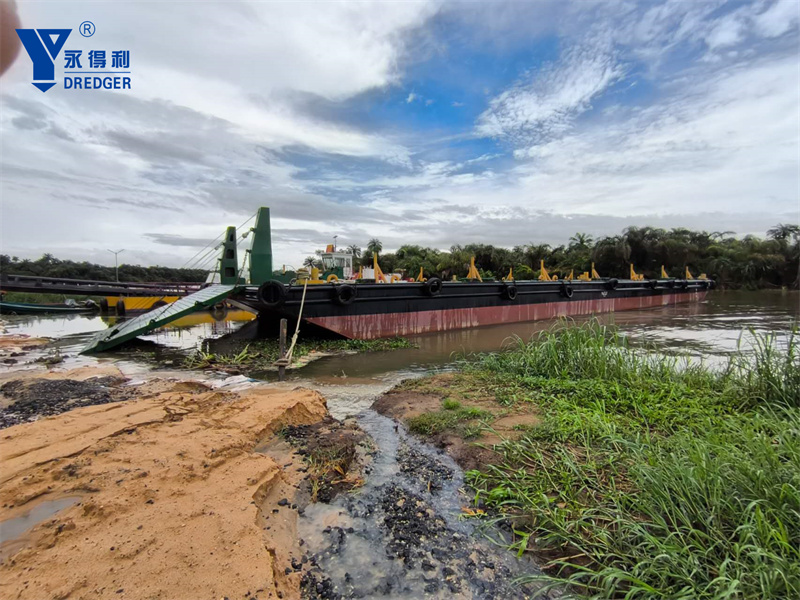

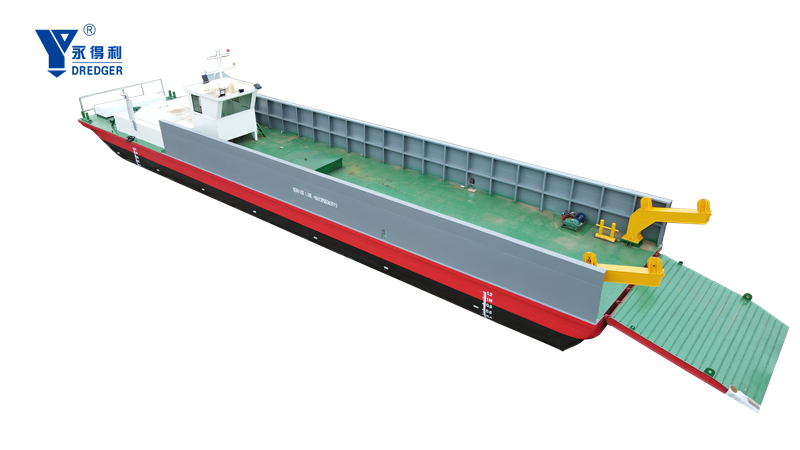

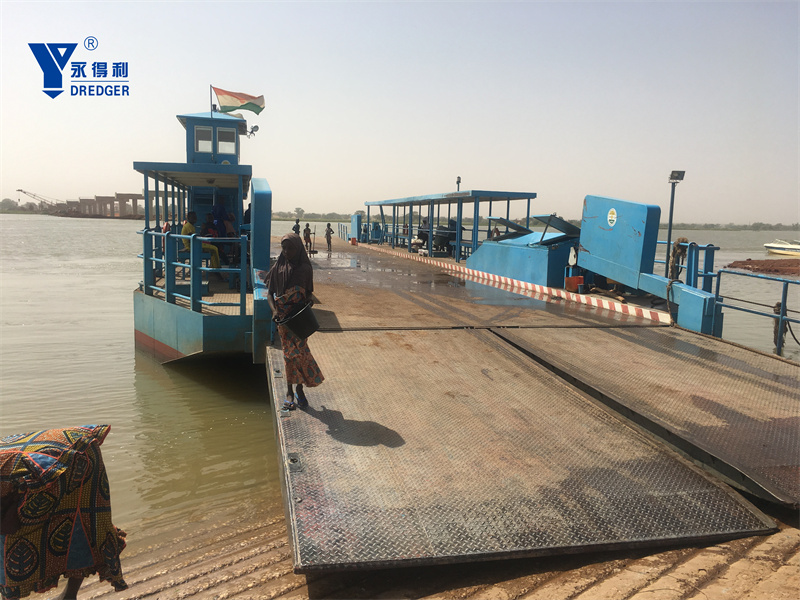

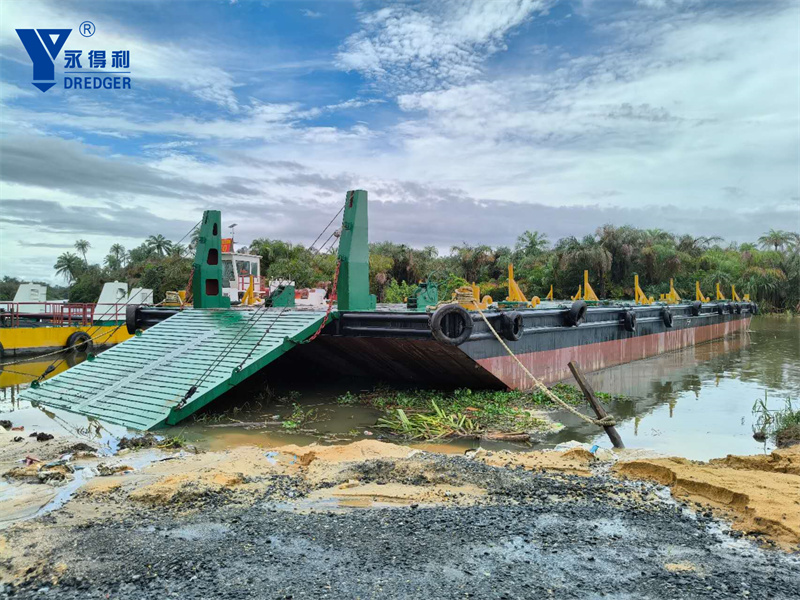

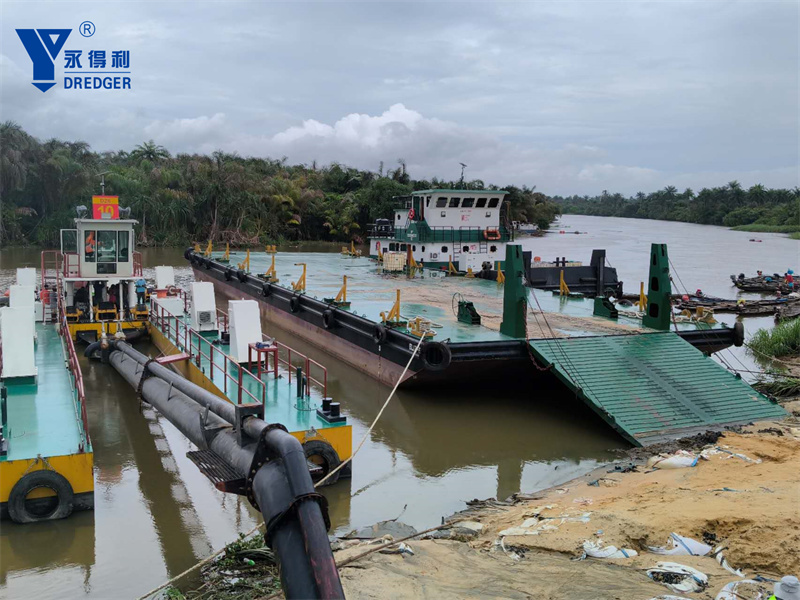

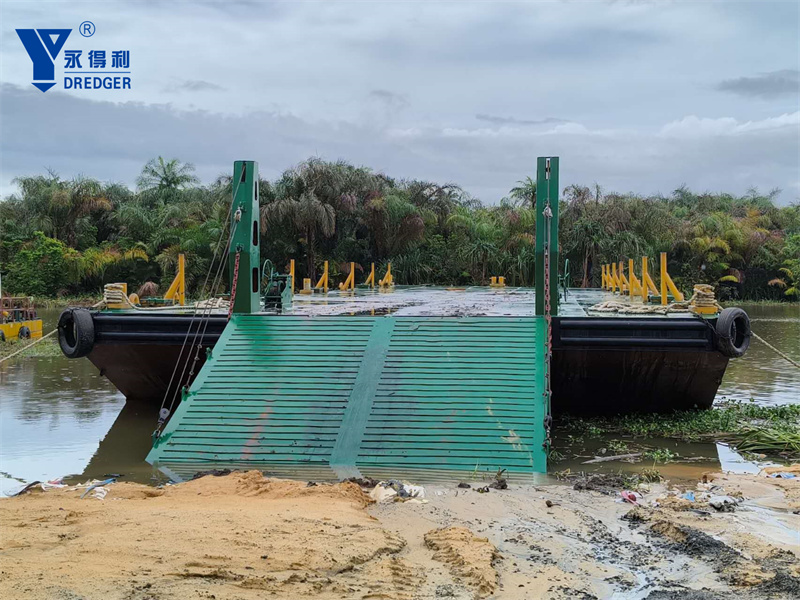

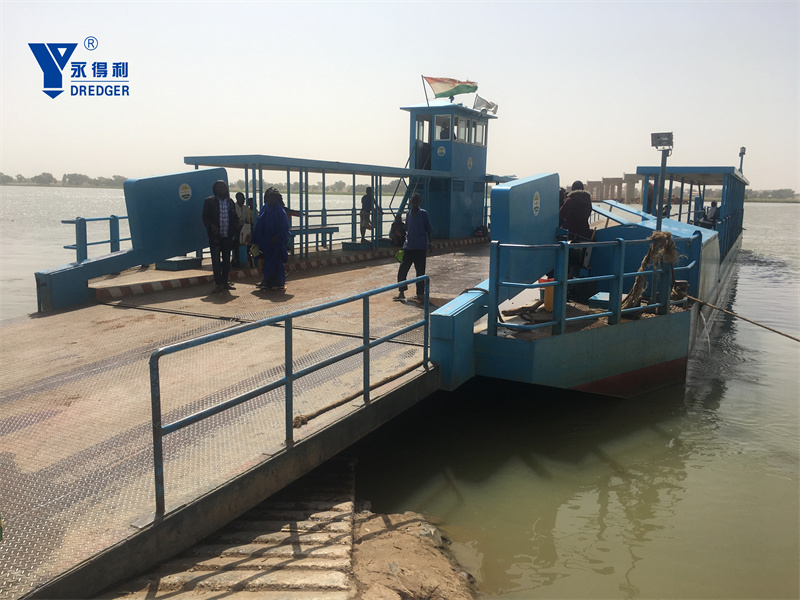

Flat Deck Barge

Product Overview

A Flat Deck Barge is a highly versatile, non-self-propelled marine vessel engineered with a heavily reinforced flat deck. Designed to carry exceptionally heavy, oversized payloads, it serves as the ultimate floating platform for marine construction, logistics, and offshore transport.

Key Product Features

· Heavy-Duty Reinforced Deck: Features a high-tensile steel deck structure capable of withstanding extreme uniform and point loads (typically ranging from 5 to 25+ tons/m²).

· Multi-Chambered Internal Hull: Divided into multiple watertight compartments to guarantee maximum buoyancy, damage stability, and ballast flexibility.

· Flush Deck Design: The completely flat, unobstructed top surface allows for seamless roll-on/roll-off (Ro-Ro) loading and flexible cargo placement.

· Heavy-Duty Mooring Equipment: Outfitted with robust towing brackets (Smit brackets), heavy bitts, fairleads, and optional multi-point anchoring winches.

· Low Draft Efficiency: Engineered with a shallow draft and a box-shaped hull to operate smoothly in shallow coastal regions, estuaries, and riverways.

Wide Application Scenarios

· Oversized Cargo & Project Logistics: Ideal for transporting massive, indivisible infrastructure components such as bridge segments, wind turbine blades, transformers, and industrial modules.

· Marine Construction Floating Platform: Serves as a rock-solid base for mounting crawler cranes, piling rigs, concrete batching plants, and diving equipment in offshore projects.

· Aggregate & Bulk Transport: Extensively used to ferry raw construction materials like armor rocks, gravel, sand, and coal across waterways.

· Temporary Pontoons & Jetties: Can be securely moored or spudded down to act as temporary floating docks, staging areas, or vehicle landing ramps during coastal construction.

How to Select the Right Model

Choosing the perfect flat deck barge depends on matching the barge's structural design with your specific project demands:

1.Deck Load Capacity (Tons per m²): Calculate both the total weight and the exact footprint of your cargo. If you are operating a heavy crawler crane on deck, choose a Heavy-Duty Construction Barge with high localized point-load resistance rather than a standard transport barge.

2.Dimensions (Length, Beam, Depth):

1）Length & Beam: Must accommodate your maximum cargo size and provide enough water plane area to prevent tipping.

2）Depth: Crucial for stability in open seas. Ensure the barge has enough freeboard when fully loaded.

3. Operational Environment (Coastal vs. Inland): For inland river channels, select a Shallow-Draft, Low-Profile Barge to navigate shallow waters and low bridges. For open ocean transport, choose an IACS-Classified (e.g., ABS, BV, CCS) Ocean-Going Barge with a raked bow to handle waves and heavy swells.

4.Fixation & Positioning Systems: Determine how the barge will stay in place. For shallow waters with high currents, select a model equipped with integrated spud wells (positioning legs). For deep water or offshore operations, look for a barge pre-configured with a 4-point or 8-point anchoring winch system.
