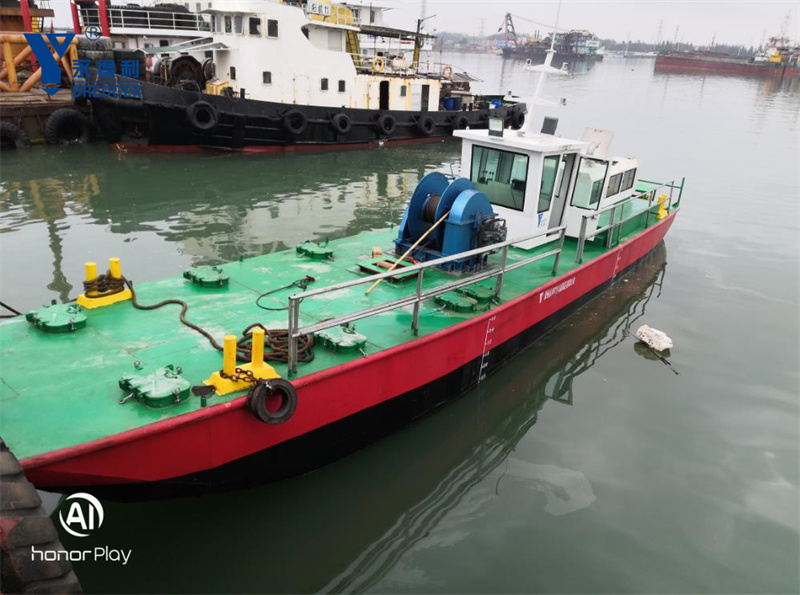

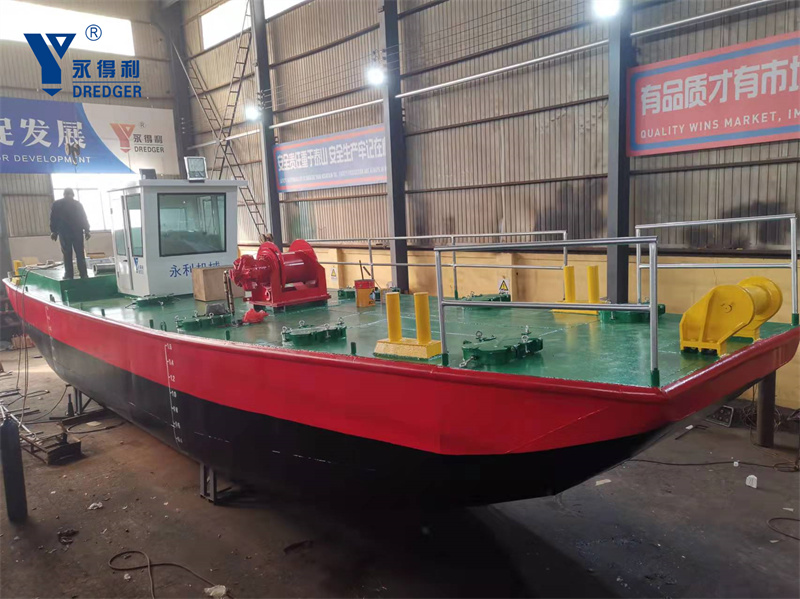

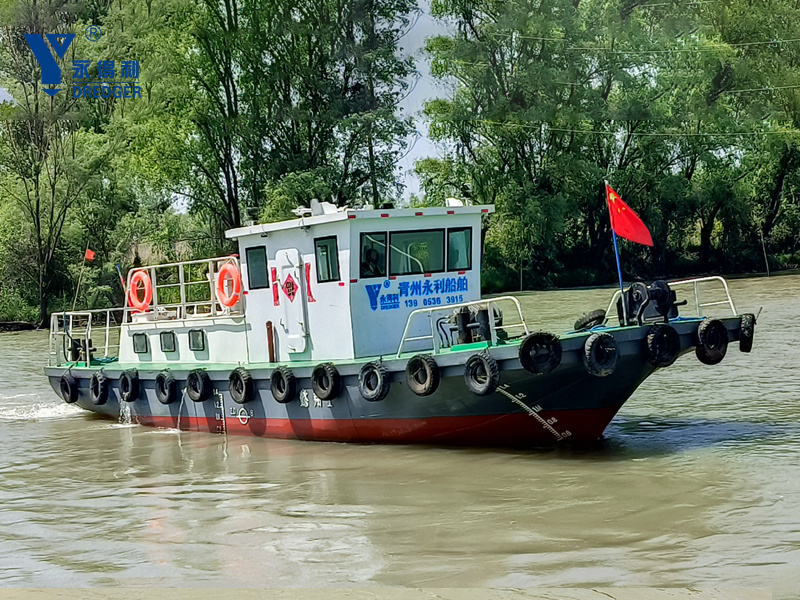

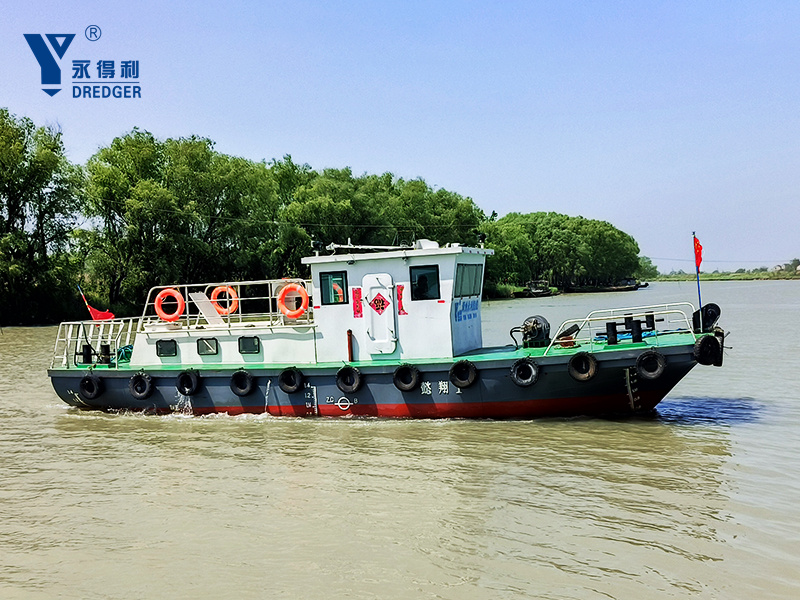

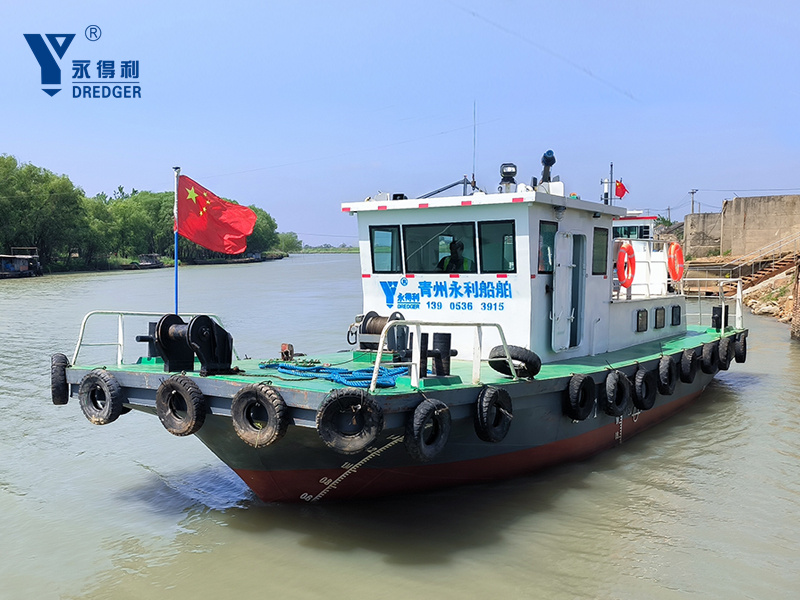

Tug Boat

The tug boats are the ultimate workhorses of the maritime industry. Specifically engineered to deliver monumental bollard pull, unmatched maneuverability, and structural resilience, these vessels are designed to assist, push, and tow the world’s largest container ships, bulk carriers, and offshore structures safely through any waters.

Key Product Features

· Monstrous Bollard Pull: Engineered with high-torque, medium-speed marine diesel engines (e.g., Caterpillar, Cummins, or Weichai) capable of delivering immense, continuous pulling and pushing power.

· Reinforced Heavy-Duty Hull & Bow: Built with extra-thick, high-tensile marine steel and reinforced internal framing to withstand extreme impact forces during pushing operations.

· Advanced Towing Winches: Outfitted with heavy-duty, quick-release hydraulic or electric towing winches on the fore and aft decks, featuring automated tension control and high-load steel or synthetic lines.

· 360° Visibility Wheelhouse: Designed with an elevated, panoramic bridge and overhead windows, giving the captain an unobstructed view of the surrounding water and the assisted vessel's hull.

· Substantial Fendering System: Wrapped in an extensive array of heavy-duty cylindrical, W-block, and D-rubber fenders at the bow and stern to absorb shock and protect both vessels during contact.

Application Scenes

· Port & Harbor Ship Assist: Guiding, pushing, and pulling ultra-large container ships, cruise liners, and tankers safely into narrow berths and dry docks.

· Coastal and Ocean Towing: Transporting non-propelled barges, heavy industrial equipment, floating docks, and disabled vessels across coastal waters or deep oceans.

· Offshore Oil & Gas Support: Assisting in the positioning, mooring, and towing of semi-submersible drilling rigs, FPSO units, and offshore wind farm components.

· Escort Duties: Escorting hazardous cargo vessels (like LNG or oil tankers) through high-risk, narrow channels at speed, ready to act instantly as an emergency brake if the ship loses steering.

How to Choose the Right Model

Selecting the right tug boat depends on the size of the vessels you intend to assist and the environmental forces of your operating area. Consider these four critical metrics:

1. Bollard Pull (BP) Requirements

· Under 40 Tons: Ideal for small coastal ports, inland waterways, and towing light barges.

· 50 to 70 Tons: The industry standard for standard harbor ship-assist and medium-sized cargo vessels.

· 80+ Tons: Necessary for mega-ports handling ultra-large container ships (ULCS), VLCC tankers, or deep-sea offshore towing.

2. Propulsion Configuration (ASD vs. Conventional)

· Choose Azimuth Stern Drive (ASD) or VSP if your operations require high agility in tight, congested harbors where multi-directional force is mandatory.

· Opt for Conventional Twin-Screw with Kort Nozzles for long-distance, straight-line ocean towing where fuel efficiency and forward pulling stability are prioritized.

3. Draft and Dimension Limits

· Ensure the tug’s draft (depth below the waterline) is shallow enough to safely navigate your local harbor channels, but deep enough to keep the massive propellers fully submerged for maximum thrust.
