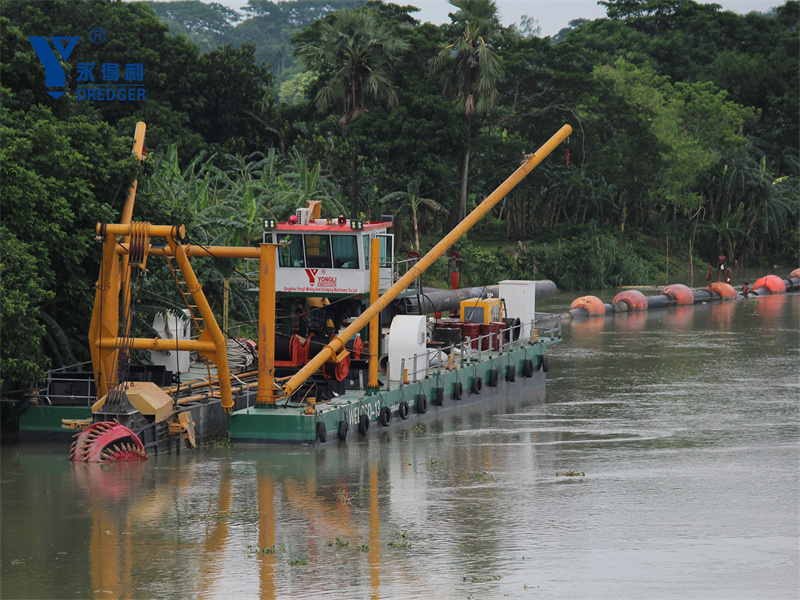

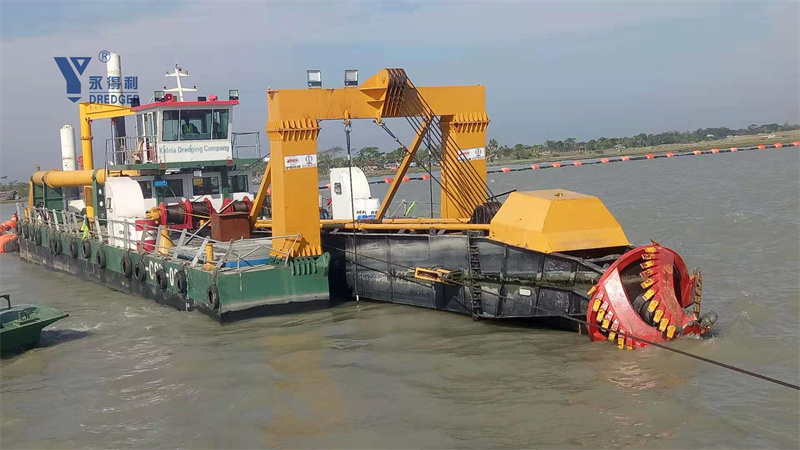

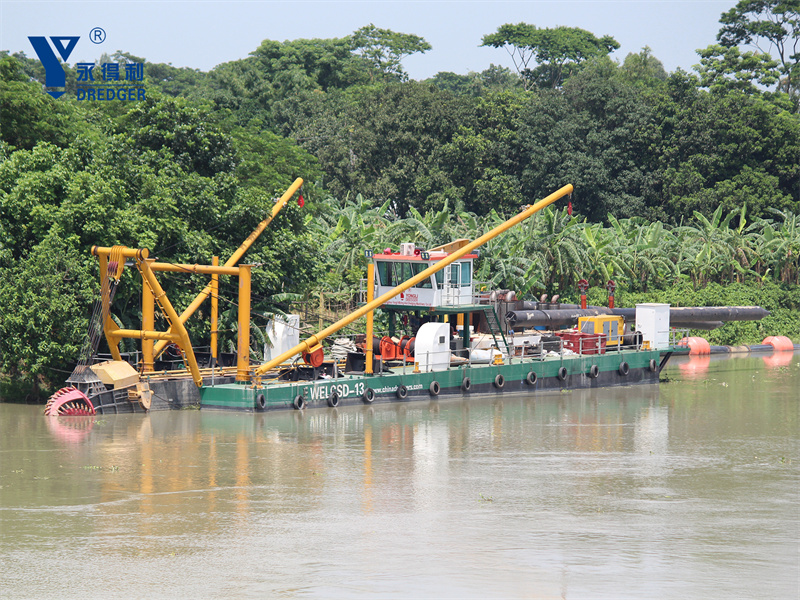

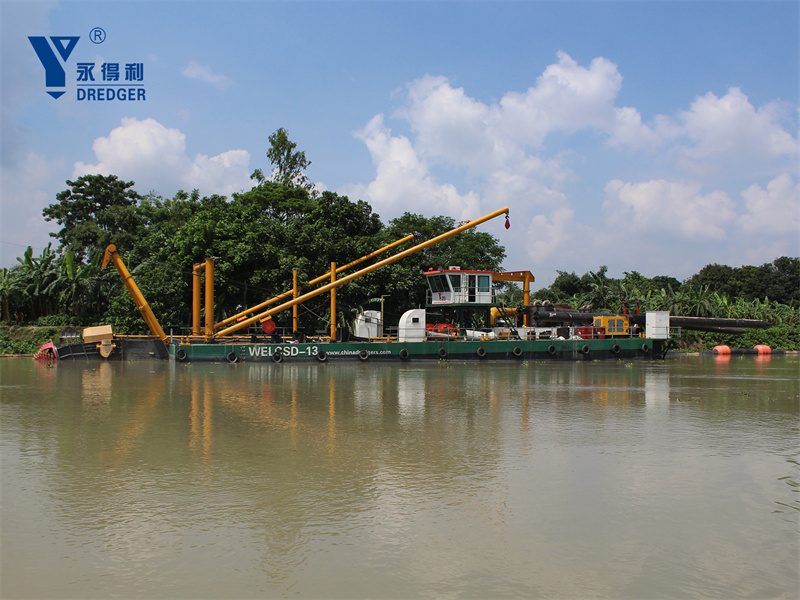

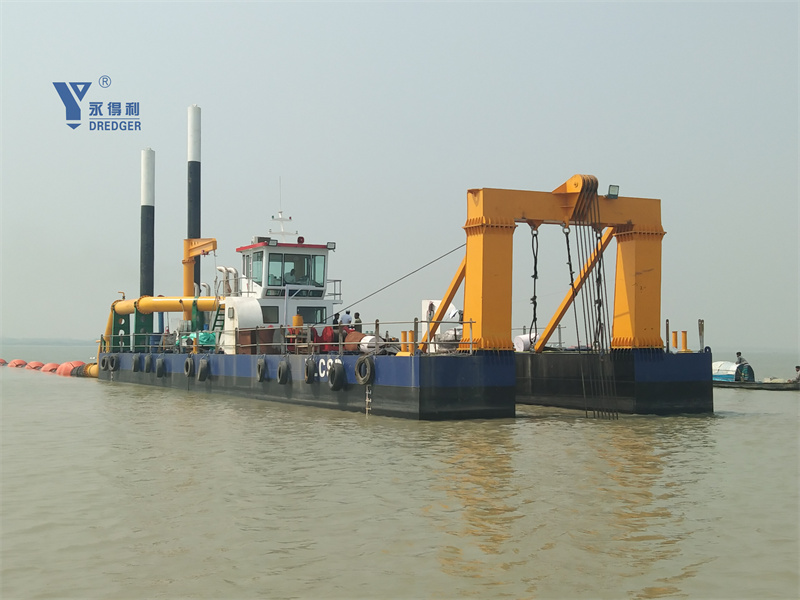

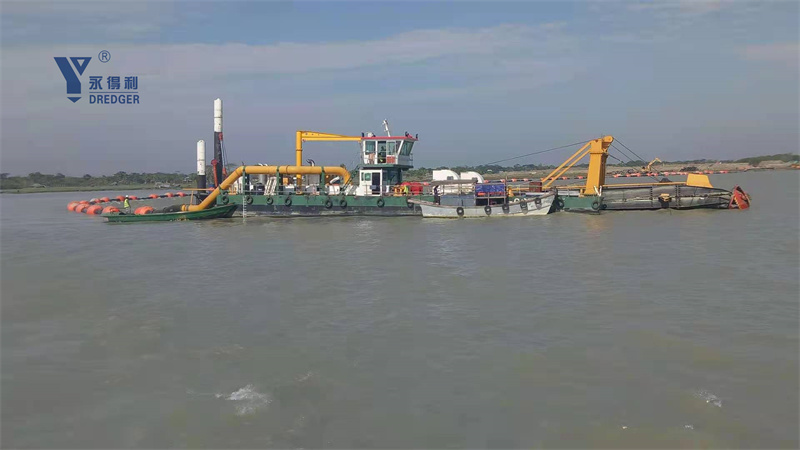

YLCSD650 Cutter Suction Dredger

YLCSD650 Cutter Suction Dredger

The cutter suction dredger could work for full time in A/B type sheltered sailing area and inland waterways, lakes and reservoirs because of it high terrain adaptability
The cutter suction dredger is of dis-mountable designing and structure, which makes it easy to disassembling and transportation by road. After simple on-site assembling and commissioning, the cutter suction dredger will put into use.
The excavating and discharging processes are completed one time and no need help of other machines and boats, so the project operating cost will be brought down dramatically.
Tel: +86 18366593989
WhatsApp: +86 18366593989
E-mail: chinadredgers@163.com
Get a Quote

Product Description

The cutter suction dredger could work for full time in A/B type sheltered sailing area and inland waterways, lakes and reservoirs because of it high terrain adaptability

The cutter suction dredger is of dis-mountable designing and structure, which makes it easy to disassembling and transportation by road. After simple on-site assembling and commissioning, the cutter suction dredger will put into use.

The excavating and discharging processes are completed one time and no need help of other machines and boats, so the project operating cost will be brought down dramatically.

Model

YLCSD650

Slurry capacity

6000m3/h

Slurry concentration

15-20%

Length overall(ladder raised)

53m

Breadth

9.03m

Height

2.75m

Dredging depth

18m

Discharge distance

1500m

Total power

2634kw

Hydraulic winch

150kn

Cutter power at shaft

320kw
